Choose a pump that can circulate the entire pool volume in 6 to 8 hours. For most residential pools (15,000 to 50,000 litres) that means a pump rated 4 to 8 m3/h. A variable speed pump cuts energy costs by EUR 100 to EUR 400 per season compared to a single-speed model.
How to calculate the flow rate you need
The formula is straightforward:
Required flow rate (m3/h) = Pool volume (m3) / target turnover time (hours)
Recommended turnover time: 6 to 8 hours for normal use. Always round up to the next available pump size, because pipework and fittings reduce real-world flow below the rated value.
| Pool volume | Calculation | Minimum rated flow |
|---|---|---|
| 15,000 l (15 m3) | 15 / 8 | 2 m3/h |
| 25,000 l (25 m3) | 25 / 8 | 3.1 m3/h — choose 4 m3/h |
| 40,000 l (40 m3) | 40 / 8 | 5 m3/h — choose 6 m3/h |
| 60,000 l (60 m3) | 60 / 8 | 7.5 m3/h — choose 8 m3/h |
How to calculate your pool volume
If you do not know your pool volume off the top of your head, calculate it:
- Rectangular: length x width x average depth x 1,000 litres
- Oval: length x width x average depth x 0.85 x 1,000 litres
- Round: radius² x 3.14 x average depth x 1,000 litres
Worked example — rectangular 8 m x 4 m, average 1.4 m deep: 8 x 4 x 1.4 x 1,000 = 44,800 litres. Use this volume in the formula above: 44.8 / 8 = 5.6 m3/h, so choose a 6 m3/h pump.
Pump types: which one suits your pool?
Single-speed pump (classic)
Runs at 100% power at all times. Lowest purchase price at EUR 150 to EUR 350, but most expensive to run: 800 to 2,000 Wh consumed per day at 8 hours of use. Best choice for seasonal above-ground pools that run for one to three years.
Two-speed pump
Switches between two preset speeds: low (energy-saving) for routine filtration and high (full power) for backwashing or vacuuming. Mid-range purchase price at EUR 300 to EUR 600. A practical step up from single-speed without the full investment in variable speed.
Variable speed pump (VS/VFD)
Full control over motor speed from 10% to 100%. The speed can be programmed by time of day: slow overnight, faster during peak swimming hours. Purchase price ranges from EUR 500 to EUR 1,200. Energy consumption is 60 to 80% lower than a comparable single-speed pump. The right choice for in-ground pools or any pool used for more than three seasons. For more detail on how these components fit into your overall pool system, read our guide to how a pool filter pump works .
Comparing energy costs
At an electricity price of EUR 0.40 per kWh and 180 operating days per season:
| Pump type | Consumption | Seasonal cost |
|---|---|---|
| Single-speed, 750 W, 8 h/day | 1,080 kWh | EUR 432 |
| Variable speed, avg 200 W, 12 h/day | 432 kWh | EUR 173 |
A variable speed pump saves roughly EUR 259 per season in this scenario. With a price premium of EUR 500 over a single-speed model, the payback period is under 2 seasons.
What to check before buying
- Self-priming: essential if the pump is mounted above the waterline
- Port orientation: front-port or rear-port to match your pipework layout
- IP rating: minimum IP55 for outdoor installation
- Warranty: reputable brands offer 2 to 3 years on residential pumps
- Spare parts availability: check that impellers, O-rings, and covers are sold separately
Well-known brands for residential use: Astralpool, Pentair, Kripsol, Hayward, Intex and Bestway (budget segment).
For most smaller above-ground pools, an entry-level single-speed pump is the most practical starting point:

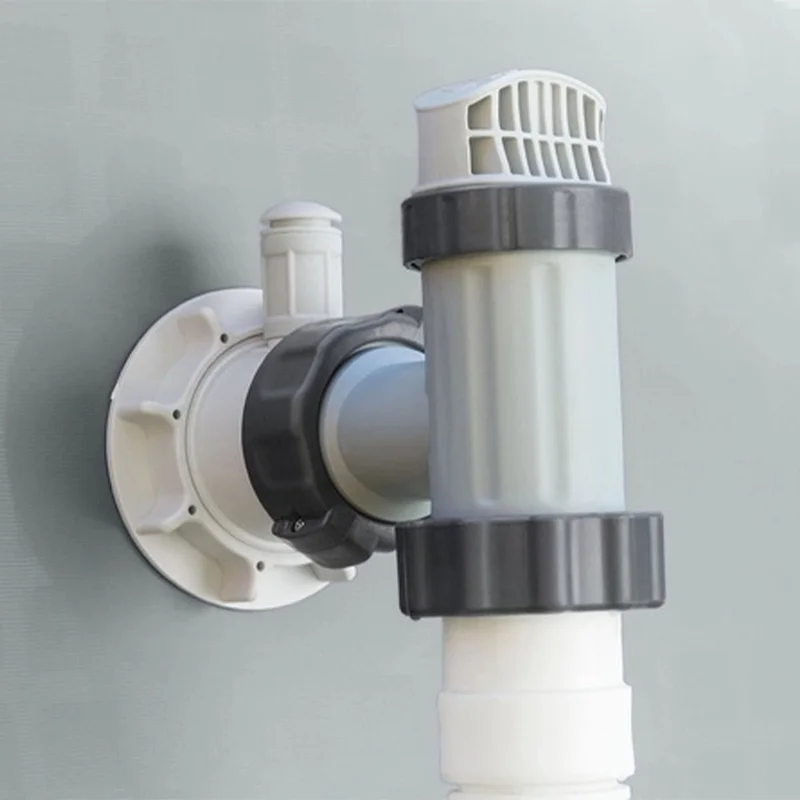

Intex Krystal Clear Sand Filter Pump 3785 l/hr
IntexSingle-speed pump for above-ground pools up to 15,000 litres. Self-priming, easy to install and quiet enough for daily use.
- Simple installation
- Ready to use straight out of the box
- Quiet for a single-speed pump
- High energy use during extended runtime
- Not suitable for large inground pools
For in-ground pools or any installation where long-term running costs matter, a variable speed pump earns back its premium price quickly:
Pahlen AquaForce VS600 Variable Speed Pump
PahlenVariable speed pump from 1,000 to 3,450 RPM with digital timer and flow measurement. Saves up to 80% energy during low-speed filtration.
- Up to 80% energy saving at low speed
- Digital timer for automated schedules
- Quieter than any single-speed pump
- Higher purchase price, payback in 1 to 2 seasons
- Installation requires more technical knowledge
Hot-weather calculation: three turnovers per day
The 6 to 8 hour formula above gives you the minimum. In high summer, water temperatures above 26°C accelerate bacteria growth and chemical consumption. The recommendation for peak season is three complete turnovers per day:
Required flow rate (m3/h) = pool volume (m3) x 3 / daily operating hours
For a 25 m3 pool running 10 hours per day: 25 x 3 / 10 = 7.5 m3/h. Choose a pump rated 8 m3/h.
| Pool volume | Operating hours | 3 turnovers/day | Recommended rating |
|---|---|---|---|
| 15 m3 | 10 h | 4.5 m3/h | 6 m3/h |
| 25 m3 | 10 h | 7.5 m3/h | 8 m3/h |
| 40 m3 | 12 h | 10 m3/h | 10 m3/h |
| 60 m3 | 12 h | 15 m3/h | 16 m3/h |
Pipe resistance and the pump curve
Every pump comes with a pump curve — a graph showing actual flow rate (m3/h) at different system pressures (metres of water column, mwc). A pump rated 10 m3/h at zero resistance may only deliver 6 m3/h in your actual installation.
Typical resistance values in a standard in-ground installation:
- Every metre of pipework: approx 0.05 to 0.10 mwc (DN50 pipe)
- Every 90-degree elbow: equivalent to 0.5 to 1 metre of pipe
- Sand filter (dirty but not blocked): 1 to 3 mwc
- Heat exchanger: 2 to 4 mwc
- UV unit: 0.5 to 1 mwc
An installation with 25 metres of pipe, 6 elbows, a sand filter, and a heater can accumulate 6 to 10 mwc of total resistance. Always check the pump curve at 8 mwc — that is the actual flow rate your installation will see. For guidance on sand versus cartridge filter resistance characteristics and how they affect pump selection, see our comparison article.
Variable speed energy savings: the real numbers
A 1.1 kW single-speed pump running 12 hours per day: 1.1 kW x 12 h x EUR 0.40/kWh = EUR 5.28 per day. Over a 150-day season: EUR 792.
The same installation with a variable speed pump: at 30% of maximum speed, the motor draws just 3% of maximum power due to the cubic power law. Averaging across a typical day (low speed overnight, higher speed during peak hours and backwash): approximately 0.2 kW. 0.2 kW x 12 h x EUR 0.40 x 150 days = EUR 144 per season. Saving: EUR 648 per season.
With a price premium of EUR 200 to EUR 500 over a single-speed pump, the payback is less than one full season.
Noise levels: important for small gardens and terraces
Single-speed pumps run at 2,800 to 3,500 RPM and produce 65 to 75 dB at one metre distance — similar to a vacuum cleaner. At 2 metres from a neighbouring garden that level is clearly audible, especially on summer evenings.
Variable speed pumps at low speed (800 to 1,200 RPM) produce 40 to 50 dB: closer to a refrigerator humming. If you plan to run the pump overnight — which is common with a time-controlled variable speed pump — noise at low speed is the number that matters. Always check the dB figure at low speed, not the maximum noise level quoted on the box.
Common mistakes when choosing a pool pump
Oversized pump: too much flow drives water through the filter bed too fast. At high velocity, fine particles pass through the sand without being trapped — filtration quality drops even though the pump is working harder. An oversized pump also makes more noise and wastes energy with no benefit.
Undersized pump: dead zones form in pool corners and deep areas where water circulation is insufficient. Bacteria and algae establish themselves in these still zones. Water chemistry becomes harder to balance across the whole pool.
Ignoring pipe diameter: a pump rated 10 m3/h on 32 mm hose delivers only 6 to 7 m3/h in practice because of high friction losses in narrow pipework. Always match or exceed the pump connection size. Larger diameter pipe means less resistance and more actual flow.
Overlooking IP rating: a pump marked IP44 is only splash-resistant. Outdoor installations require at least IP55. Check the IP rating whenever you are mounting a pump outside, even under a shelter. For ongoing care and inspection intervals, our guide to pool filter pump maintenance covers what to check each season.
What to look for on the nameplate
When comparing pumps on a product page or in a shop, check these specifications:
- Flow rate at 4 mwc or 6 mwc — not the rated flow at zero resistance
- Power in watts — not horsepower or HP alone
- IP rating — minimum IP55 for outdoor use
- Energy class — Class A is better than B or C, per EU regulation 2019/1781
- Connection size — 32 mm, 38 mm, or 50 mm
Larger connection sizes (50 mm) have less friction and are more efficient at high flow rates. Never fit a smaller connection than the pump requires to save money on fittings — you will pay more in electricity and achieve less actual circulation.
Frequently asked questions
How do I calculate the pump capacity I need?
Divide your pool volume in litres by 8 hours to get the minimum flow rate in litres per hour. Divide by 1,000 to convert to m3/h. Example: 32,000 litres / 8 = 4,000 l/h = 4 m3/h. In warm weather aim for three full turnovers per day and use the higher formula.
What is a variable speed pump (VS pump)?
A variable speed pump can operate at different motor speeds — typically between 10% and 100% of maximum. At low speed it uses up to 80% less energy than a traditional single-speed pump, thanks to the cubic relationship between speed and power. The higher purchase price is typically recovered within one to three seasons through energy savings.
How large should my filter tank be to match my pump?
The filter tank capacity must match the pump output. A pump rated at 4 m3/h needs a filter tank with a certified capacity of at least 4 m3/h. Check the technical datasheet of both components and compare the rated flow at the same pressure. Running a filter at higher flow than its rated capacity reduces filtration quality and shortens media lifespan.
My pump has the right flow rate but filtration is poor. Why?
A correctly sized pump can still under-filter if: the filter media (sand, cartridge) is clogged or due for replacement; the suction or return lines are too narrow, creating excess resistance; there is air trapped in the pump housing or pipework; or the pump is losing prime because of a cracked suction pipe. Check all four before replacing the pump.
